Model No.: HKS2-E, HKS2, HKS3, HKS4, HKS4-EL, TM4-T
Status: New
Machine Type: Other
Place Of Origin: China
Weaving Style: Warp
Weaving Method: Single
Programming Control: Yes
Warranty Period: 1 Year
Core Selling Point: High Productivity
Marketing Type: Other
Core Component Warranty Period: 1 Year
Applicable Industry: Garment Shops, Building Material Shops, Manufacturing Plant, Construction Works, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Product Type: Other
Needle Type: Other
Weaving Width: Other
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Components: Other
| Selling Units | : | Set/Sets |
| Package Type | : | Wooden pallet or steel pallet |
| Picture Example | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

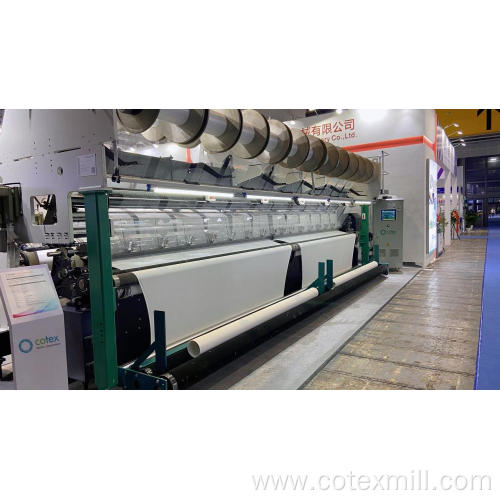

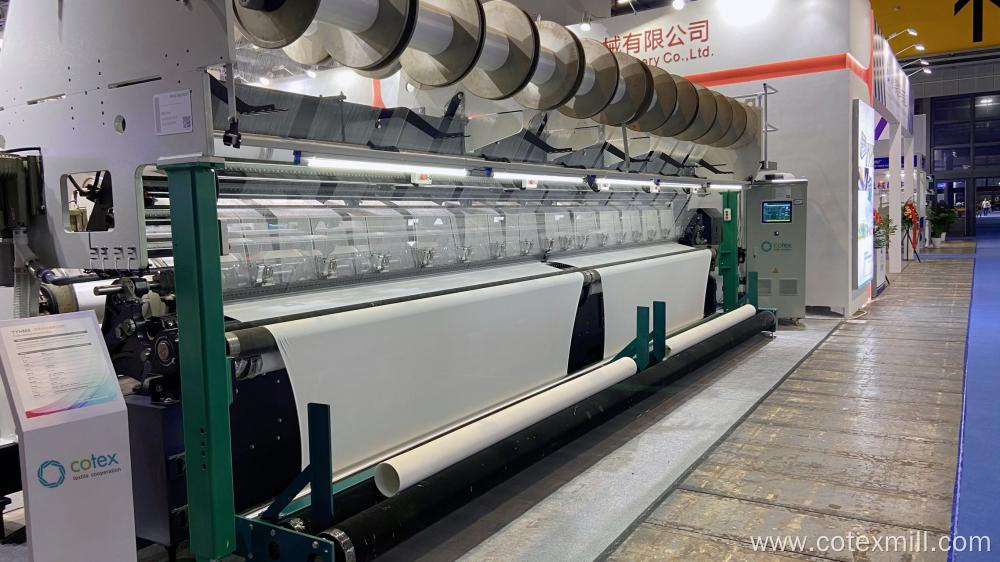

Tricot Warp Knitting Machine
Main Introduction:
Tricot Machine applied at apparel and upholstery fields for the production of stretch and non-stretch fabric.
Tricot machine is mainly used at apparel and upholstery fields for the production of stretch and non-stretch fabric, e.g., sportswear, lingerie, tulle, velvet, velour, super plush, automobile interiors etc. Tricot machine electric controlled system makes the operation efficient and accurate. By the application of brushing device which can create the loop on the fabric from the warp knitted terry towel machine.
We make tricot machine from 2bar to 4bar with wide width range from 42 inch to 290 inch. The concept of our tricot machine is based on easy operation and high efficiency. Touch screen interface can record all the production data and fabric parameter which can be transferred via internet for better production management.
Technical Specifications:
| FABRIC SPECIFICATIONS | ||
| Working width | 130",186",218",268",280" | |
| Bar | 2,3,4 | |
| Gauge | E24, E28, E32 | |
| BARS/KNITTING ELEMENTS | ||
| Individual Needle Bar | carbon bar | standard |
| Tongue bar | carbon bar | standard |
| Sinker bar | carbon bar | standard |
| Ground bar | carbon bar | standard |
| Jacquard bar | pizeo jacquard control system | |
| WARP BEAM SUPPORT | ||
| Free standing | application 30"/40"beams | |
| MACHINE DRIVE AND CONTRO | ||
| Main motor | invertor regulated control | standard |
| WARP LET-OFF DEVICE | ||
| EBC | electric control | standard |
| CLOTH TAKE-UP DEVICE | ||
| EAC | electric control | standard |
| BATCHING DEVICE | ||
| Electric | integrated centrally driven | standard |
| Brushing device for terry towel | optional | |
| Batching diameter | ||
| PATTERN DRIVE | ||
| Pattern Disc | standard | |
| EL | via electric motor | optional |
| MONITORING&SOFTWARE | ||
| HMI | monitoring and reporting via display | standard |
| Cotex Suite | optional | |
| OIL SUPPLY | ||
| Heater exchanger | heating and cooling | optional |
| SAFETY | ||
| Light curtain | depending on country of delivery | optional |
